XHQ Series 1000 × 1000 mm

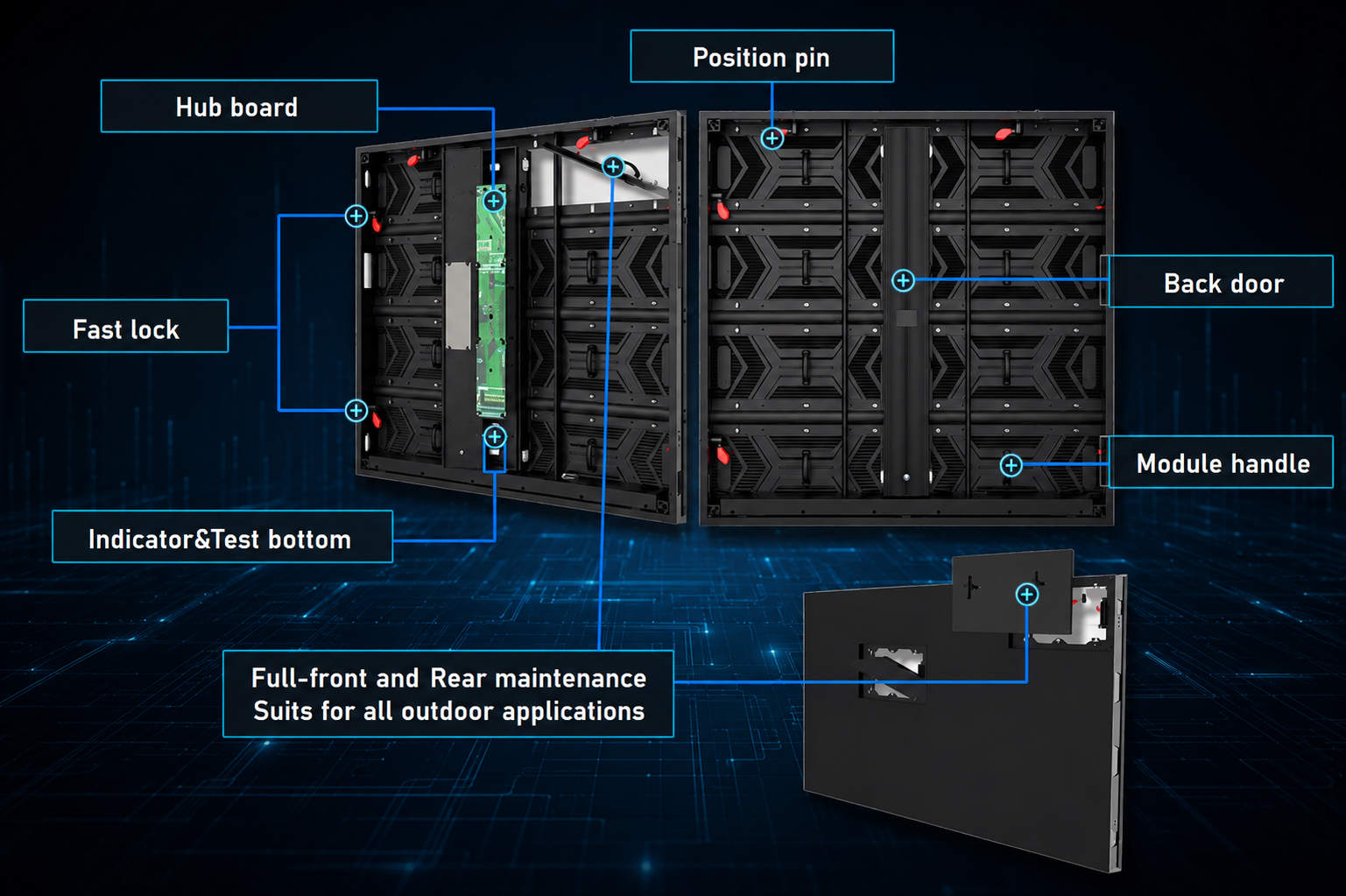

The XHQ Series is an outdoor LED display offering sharp images, high brightness, and a wide viewing angle. It supports front and rear maintenance and features a fast-lock system for quick installation. Ideal for outdoor ...
ข้อมูลเพิ่มเติม รูปภาพประกอบ และวิดีโอแนะนำสินค้าอย่างเป็นทางการ
The XHQ Series is an outdoor LED display offering sharp images, high brightness, and a wide viewing angle. It supports front and rear maintenance and features a fast-lock system for quick installation. Ideal for outdoor advertising, digital signage, and large-format LED displays.
详细技术规格与工程参数说明：型号 XHQ Series 1000 × 1000 mm
| 技术参数 / 项目 | 详细说明 |
|---|---|
| Pixel Pitch | P2.976 / P3.91 / P4.81 / P6.25 / P7.81 / P10.42 |
| Module Size | 500 × 250 mm |
| Cabinet Sizes | 1,000 × 1,000 / 1,500 × 500 / 1,000 × 750 / 1,000 × 500 mm |
| Brightness | >4,500 cd/m² |
| Cabinet Weight | 25 kg |
| Application | Outdoor |
| Protection Rating | IP65+ |
| Viewing Angle | 160° |
